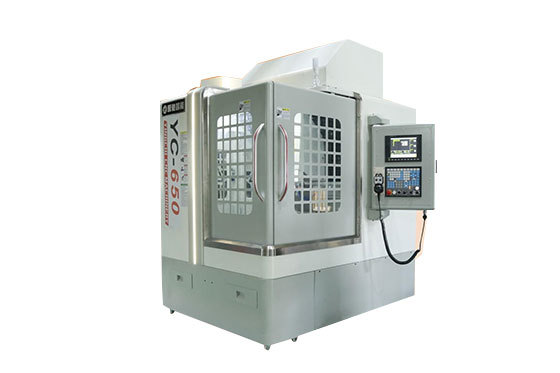

High-speed precision engraving and milling machine series
Mechanical features:

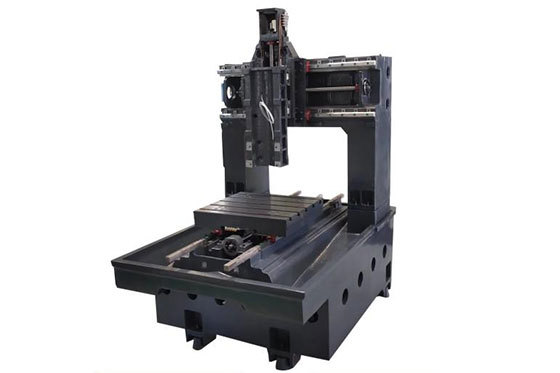

The machine tool adopts unique beam and bed integration technology. Gantry type high rigidity structure. Ensure long-term high-precision service life of machinery and strong shock resistance.

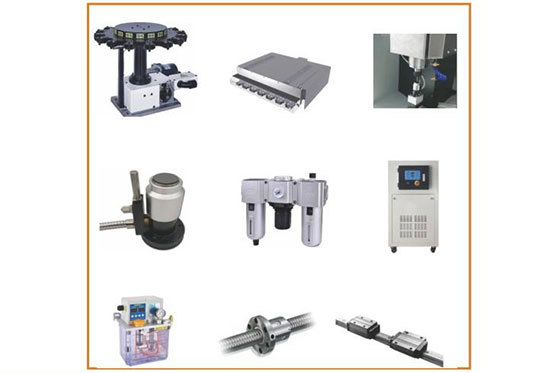

The three-axis adopts imported high-precision linear guides and ball screws, which are wear-resistant and have a small friction coefficient. They have high positioning accuracy and flexibility, and move smoothly.
Using 8 NSK bearings and imported couplings.
High-speed, high-torque, high-precision motorized spindle can meet the needs of high-speed machining and ensure accuracy; it can realize high-speed milling of small precision molds and parts, with high machining accuracy and low vibration. Low noise.
The control system adopts Taiwan's new generation and Baoyuan high-speed numerical control system, which is easy to learn and use, and easy to master.
The drive system adopts Japan Yaskawa and Japan Sanyo AC drive servo system, which runs smoothly, has excellent acceleration performance, low noise and high control precision.
Product Description
| Model | Unit | YC—C650 | YC—C870 | YC—C1280 |
| Journey | ||||
| X-axis travel | mm | 500 | 700 | 700 |
| Y-axis travel | mm | 600 | 800 | 800 |
| Z-axis travel | mm | 250 | 330 | 450 |
| Distance from work table to spindle end face | mm | 80-300 | 140-490 | 150-600 |
| Workbench | ||||
| Rapid feed | mm/min | 15000 | 15000 | 15000 |
| Cutting feed | mm/min | 1～8000 | 1～8000 | 1～8000 |
| Spindle | ||||
| Spindle speed | r.p.m | 2000～24000 | 2000～24000 | 2000～18000 |
| Spindle taper | ER 25 | ER 32 | ER 32 | |
| Spindle cooling | Oil cooler | Oil cooler | Oil cooler | |
| Three-axis servo motor | kw | 0.85～2.0 | 0.85～2.0 | 1.5～3.0 |
| Spindle motor | kw | 8.5 | 5.5（OP7.5） | 7.5 |
| Other | ||||
| System Configuration | New generation, Mitsubishi | New generation, Mitsubishi | New generation, Mitsubishi | |
| CNC system resolution | mm | 0.001 | 0.001 | 0.001 |
| Positioning accuracy | mm | ±0.005/300 | ±0.005/300 | ±0.005/300 |
| Repeatability | mm | ±0.003 | ±0.003 | ±0.003 |
| Tool setter | Standard | Standard | Standard | |
| Lubrication system | Fully automatic lubrication system | Fully automatic lubrication system | Fully automatic lubrication system | |
| Mechanical weight | kg | 3100 | 4000 | 6000 |
| Mechanical Dimensions | mm | 1730×1930×2400 | 2000×2100×2400 | 3000×2300×2800 |
