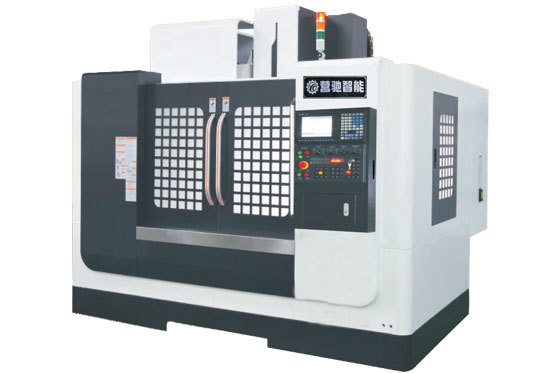

Two-line and one-hard machining center machine series

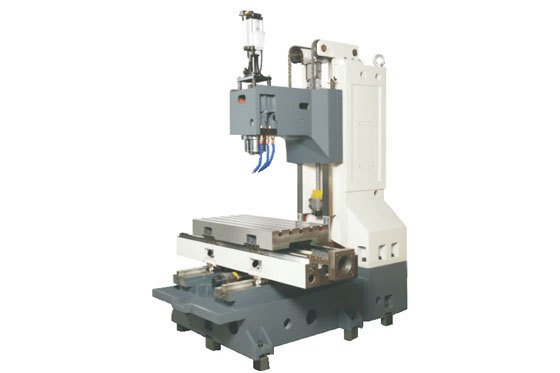

Mechanical features:
The base adopts A-shaped rib structure arrangement to improve the vibration absorption effect, and the overall casting adopts box design to achieve high bending rigidity.
The structure is made of high-grade Meehan sodium cast iron, which is tempered to eliminate internal stress and ensure the best rigidity, accuracy and durability.
The high-rigidity structure is derived from the accumulation of years of experience and data and the rationalization of the slenderness ratio design of the mechanism, which improves the compression resistance and side bending resistance of the casting.

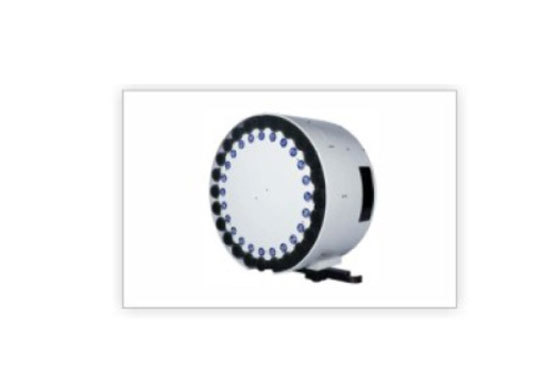

High-speed tool changing mechanism design, combined with pre-induction control, combined with high-efficiency tooling system, to carry out tool-changing work, the tool changing speed is fast, and the high-speed tool changing function is realized.
Category:
Product Description
| Model | Unit | YC—850 | YC—1060 | YC—1270 | YC—1370 |
| Journey | |||||
| X-axis travel | mm | 800 | 1000 | 1200 | 1300 |
| Y-axis travel | mm | 500 | 600 | 700 | 700 |
| Z-axis travel | mm | 500 | 600 | 600 | 700 |
| Workbench | |||||
| Working desk size | mm | 100×500 | 1300×600 | 1360×700 | 1500×700 |
| Maximum load | kg | 500 | 900 | 1000 | 1000 |
| T-slot (width - number of slots x pitch) | m/min | 18-5×100 | 18-5×100 | 18-5×150 | 18-5×135 |
| Feed | |||||
| X, Y axis rapid traverse | m/min | 18000 | 18000 | 18000 | 18000 |
| Z axis cutting feed | m/min | 15000 | 15000 | 15000 | 15000 |
| Spindle | |||||
| Spindle speed | r.p.m | 8000 | 8000 | 8000 | 8000 |
| Spindle Specifications | BT40 | BT40 | BT50 | BT50 | |
| Spindle horsepower | Kw | 7.5 | 11 | 15 | 15 |
| Other | |||||
| Positioning accuracy | mm | ±0.005/300 | ±0.005/300 | ±0.005/300 | ±0.005/300 |
| Repeatability | mm | ±0.003/300 | ±0.003/300 | ±0.003/300 | ±0.003/300 |
| Mechanical weight | kg | 5500 | 8000 | 9000 | 9000 |
| Mechanical Dimensions | mm | 2700×2400×2500 | 3300×2700×2900 | 3600×3900×3000 | 3600×3900×3000 |
