High-speed drilling machine series

Mechanical features:

The super-large column is stable, and the speed of displacement is 48m/60m/min without deformation.
The super-large span base adopts a solid six-point support structure, which allows high-speed displacement without vibration or deformation.
The three-axis high-speed displacement reaches 48m/60m, the speed is fast, and the processing time is saved.
Spindle design with low inertia, direct drive of the spindle, high stability, fast and accurate tool change in the clamping arm tool magazine, tool change time is 1.4 seconds, in addition to parts processing, it is very suitable for drilling small diameter holes.
With high-function AC spindle servo motor and humanized dialogue interface, it is easy to operate.

Category:

Product consultation:

0769-81668186

Product inquiry

Related Products

Product Description

Direct drive high-speed spindle
Direct drive
The direct connection between the motor and the spindle can effectively eliminate the backlash, the torque transmission is more stable, and the quality of the machined surface is ensured; it can improve the efficiency of rigid tapping, while avoiding temperature rise and noise.
High horsepower spindle motor
With high torque AC motor
Symmetrical head design
The symmetrical design of the head structure can reduce thermal deformation due to temperature difference.
Loose knife buffer design
Avoid the bearing directly bearing the force of the knife and prolong the life of the bearing.
Large diameter spindle design
It can strengthen the cutting rigidity of the spindle.

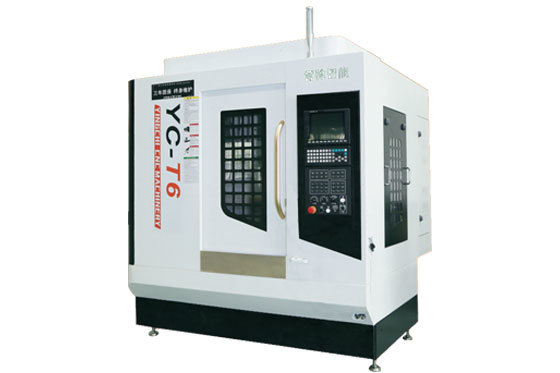

Model	Unit	YC—T6	YC—T8	YC—T11
Journey
X-axis travel	mm	600	800	1100
Y-axis travel	mm	400	400	500
Z-axis travel	mm	300	350	330
Distance from work table to spindle end face	mm	120-420	120-420	175-475
Workbench
Working desk size	mm/min	650×400	850×400	110×500
Maximum load	kg	250	350	400
T-slot (width - number of slots x pitch)	mm	14-3×125	14-3×125	18-5×125
Feed
Three-axis rapid traverse	m/min	48/48/48	48/48/48	48/48/48
Three-axis cutting feed	m/min	1-10000	1-10000	1-10000
Spindle
Spindle speed	r.p.m	20000(OP12000/15000)	20000(OP12000/15000)	20000(OP12000/15000)
Spindle Specifications		BT30	BT30	BT30
Spindle motor (continued/30 minutes freeze frame)	Kw	3.7/5.5	3.7/5.5	3.7/5.5
X,Y,Z axis motor	kw	1.5/1.5/3	1.5/1.5/3	2/2/3
Other
Positioning accuracy	mm	±0.005/300	±0.005/300	±0.005/300
Repeatability	mm	±0.003	±0.003	±0.003
Mechanical weight	kg	3000	3500	3800
Mechanical Dimensions	mm	1750×2400×2400	1950×2455×2400	2500×2200×2500
