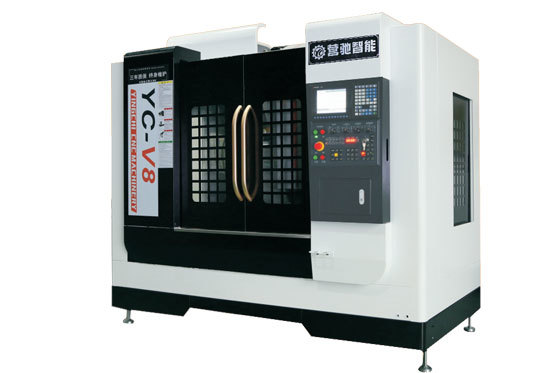

High-speed and high-precision machining center series

Mechanical features:

The best bed structure design can withstand the inertia generated by high G, as firm as a rock and as stable as Mount Tai.
The short nose spindle is extremely rigid, improving efficiency and reducing tool wear.
Three-axis rapid displacement, greatly shortening the processing time.
Highly stable tool change system reduces non-processing time.
The rear chip removal structure is adopted, which is convenient to clean the waste chips and is not easy to leak oil.
All three axes are supported by high-rigidity linear rails, with high speed and high precision.

Category:

Vertical Machining Center

Product consultation:

0769-81668186

Product inquiry

Related Products

Product Description

Opto-mechanical features
Tool magazine
The disc-type automatic tool changer adopts the 3D cam to change the tool in only 1.8 seconds. The tool disc can accommodate 24 tools, which can meet various processing needs; the tool is easy to load and unload, and the tool can be used arbitrarily.
Spindle
The design of the short nose end of the spindle head and the ring-shaped water flushing chip maximize the transmission efficiency of the spindle motor, and the cutting rigidity is excellent, which improves the machining accuracy and prolongs the life of the spindle.
No counterweight
The Z-axis adopts the design of no counterweight, and is equipped with a high-power brake servo motor to improve the driveability of the Z-axis and achieve high speed and the best surface finish.
Rail
The three-axis adopts Taiwan HIWIN/PMI linear slideway, which has high rigidity and low

Model	Unit	YC—V8	YC—V11	YC—V13
Journey
X-axis travel	mm	800	1100	1300
Y-axis travel	mm	500	600	700
Z-axis travel	mm	550	600	700
Distance from spindle nose to table	mm	90-160	120-720	120-820
Distance from spindle center to column	mm	553	665	770
Workbench
Working desk size	mm	100×450	1200×600	1400×700
Maximum load	kg	600	800	850
T-slot (width - number of slots x pitch)	mm	18-3×120	18-5×120	18-5×120
Feed
Three-axis rapid traverse	m/min	48/48/48	24/24/24	24/24/24
Three-axis cutting feed	m/min	1-10000	1-10000	1-10000
Spindle
Spindle speed	r.p.m	10000(OP12000/15000)	10000(OP12000)	10000(OP12000)
Spindle Specifications		BT40	BT40	BT40
Spindle horsepower	Kw	7.5	11	11
Other
Positioning accuracy	mm	±0.005/300	±0.005/300	±0.005/300
Repeatability	mm	±0.003	±0.003	±0.003
Mechanical weight	kg	5000	7200	9000
Mechanical Dimensions	mm	2600×2350×2650	3150×2700×2850	3550×2800×3035
