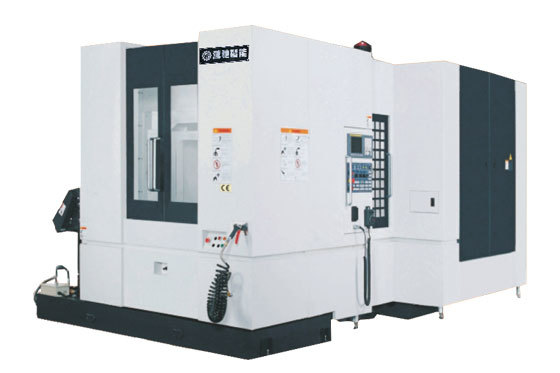

Horizontal machining center series
Mechanical features:
Milling is possible, as well as drilling, boring, reaming, reaming and rigid tapping.
The fully enclosed protection design has the advantages of small footprint and wide stroke range.

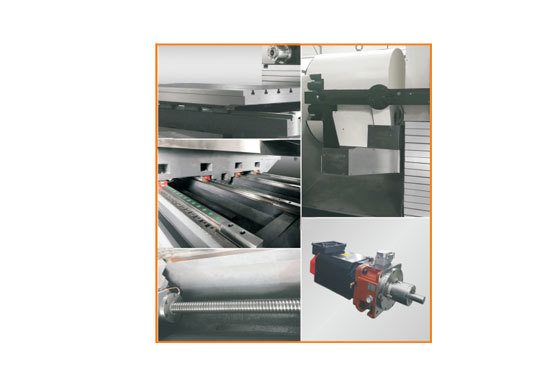

X and Z guide rails adopt linear guide rails, which have small friction coefficient, flexible movement, good rigidity, strong bearing capacity and fast movement speed.
According to user requirements, a rotary table can be installed to realize 4-axis and 4-axis linkage, which can process parts with various complex surfaces.
Category:
Product Description
| Model | Unit | YC—1075 | YC—1290 | YC—1814 |
| Journey | ||||
| X-axis travel | mm | 1000 | 1200 | 1800 |
| Y-axis travel | mm | 750 | 900 | 1400 |
| Z-axis travel | mm | 650 | 700 | 900 |
| Spindle nose to table | mm | 190-940 | 150-1050 | 160-1560 |
| 3-axis center to table | mm | 350-950 | 120-820 | 200-1100 |
| Workbench | ||||
| Working desk size | mm | 1300×600 | 1360×700 | 2000×900 |
| Maximum load | kg | 600 | 1000 | 2000 |
| Feed | ||||
| Three-axis rapid traverse | m/min | 20 | 20 | 20 |
| Three-axis cutting feed | m/min | 10-15000 | 10-15000 | 10-15000 |
| Spindle | ||||
| Spindle speed | r.p.m | 60000 | 60000 | 60000 |
| Spindle Specifications | BT50/∅190 | BT50/∅190 | BT50/∅190 | |
| Spindle motor power | Kw | 15/18.5 | 15/18.5 | 15/18.5 |
| Other | ||||
| Positioning accuracy | mm | ±0.005/300 | ±0.005/300 | ±0.005/300 |
| Repeatability | mm | ±0.003/300 | ±0.003/300 | ±0.003/300 |
| Tool magazine capacity (optional) | Bundle | 24/32 | 24/32 | 24/32 |
| Mechanical weight | kg | 8000 | 10000 | 14000 |
| Mechanical Dimensions | mm | 4500×4000×3100 | 5900×3500×3563 | 7875×7600×3405 |
