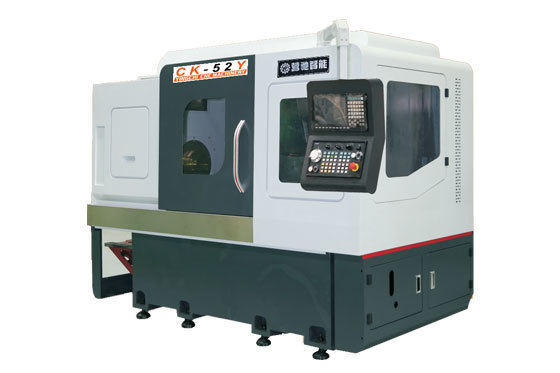

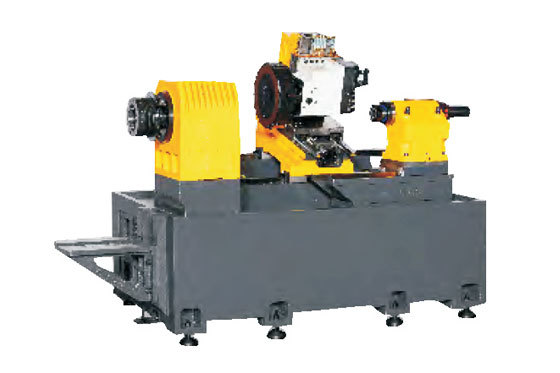

CNC lathe series

Mechanical features:

This series of machine tools are used in high-speed and high-precision inclined bed type CNC lathes, with general high-precision, high-speed and stable performance.
It adopts the design of 45-degree inclined body and large-span pallet structure, which is convenient for chip removal, stable in triangular structure and strong in rigidity.
At the same time, the spindle is equipped with a servo main motor, which has a stronger overload capacity and better rigid tapping performance.
At the same time, the machine tool adopts modular design, and various brands of operating systems can be selected according to customer needs, which is convenient to use.
The fuselage adopts computer CAD-aided design, with reasonable structure, strong stability and high rigidity.
The overall casting is made of Hanna cast iron, which has stronger shock absorption and shock absorption performance, higher strength, and has undergone secondary annealing stress relief treatment to make the machine tool more stable and durable.
The overall inclined body casting structure makes the whole bed taller, more stable and durable.
Universal spindle unit with high precision and easy maintenance, making it possible to maintain the long-term precision of the whole machine.

Category:

CNC lathe

Product consultation:

0769-81668186

Product inquiry

Related Products

Product Description

Model	Unit	YC—CNC36	YC—CNC46	YC—CNC52
Processing range
Maximum turning diameter on the bed	mm	∅420	∅420	∅500
Maximum turning diameter on the pallet	mm	∅90	∅90	∅140
Maximum processing length	mm	280	280	200
Spindle parameters
Spindle speed range	r.p.m	0-5000	0-5000	0-3000
Spindle through hole diameter	mm	∅46	∅56	∅62
Through hole diameter of draw tube	mm	∅35	∅45	∅52
Spindle type		A2-4	A2-5	A2-6
X、Z axis parameters
X-axis travel	mm	750	800	800
Z-axis travel	mm	250	290	200
X-axis rapid traverse speed	m/min	25	25	20
Z-axis rapid traverse speed	m/min	25	25	20
Accuracy parameter
X-axis repeated positioning accuracy	mm	±0.003	±0.003	±0.003
Z-axis repeatability	mm	±0.003	±0.003	±0.003
Smallest moving unit	mm	0.001	0.001	0.001
Motor Power
Spindle motor power	KW	3.7/5.5	5.5/7.5	7.5/11
X-axis motor power	KW	0.85	1.3	1.3
Z-axis motor power	KW	0.85	1.3	1.3
Cooling water pump power	KW	0.25	0.25	0.25
Hydraulic motor power	KW	0.75	0.75	0.75
Other
Spindle height from the ground	mm	1050	1050	1050
Shank size	mm	16/20	16/20	16/20
Tool holder type		Row of knives	Row of knives	Row of knives
Clamping method		Hydraulic	Hydraulic	Hydraulic
Total weight of the machine	Kg	2350	2450	2350
Dimensions	mm	2200×1600×1750	2200×1500×1750	2200×1500×1750
